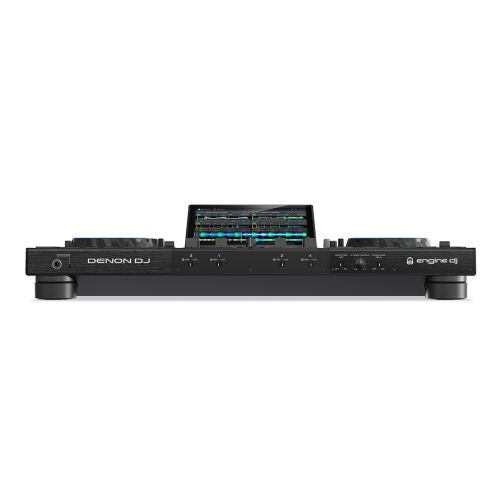

Denon Prime4+

• 10.1-inch HD multi-touch display
• Wi-Fi music streaming for access to millions of tracks from Amazon Music Unlimited, TIDAL, Beatsource,
Beatport, Soundcloud GO+, Dropbox
• Embedded Sampler with 16 pad-triggered sample slots, volume control, and output routing
• First-ever standalone Stems functionality for real-time vocal and instrument isolation (beta 2023)
• Touch FX for interactive touchscreen audio manipulation
• 26 Main FX with OLED displays and parameter controls
• 4 dynamic, knob-controlled Sweep FX (combinable with Main FX)
• Embedded lighting control for automatic and customized DMX, Philips Hue, and Nanoleaf light shows
• (4) USB and (1) SD media inputs for music playback
• Engine Remote Desktop for wireless access to computer-based music library
• On-board song analysis for streaming tracks and saved media
• 16 performance pads with Hot Cue, Saved Loop, Auto Loop, Roll, Sampler, Slicer, and Slicer Loop
modes
• Rugged metal chassis and steel knob stems for ultimate reliability
• Dedicated XLR Zone output with EQ and volume control for sending playlists and tracks to a separate
room
• Built-in 2.5-inch SATA drive bay to store music on-board
• 6-inch metal jog wheel with expanded touch surface, assignable color, and center HD displays for album
art
• (4) assignable input channels for Line/Phono external media sources
• (2) dedicated ¼” XLR combination inputs for microphones with level, EQ, Talkover, and Echo controls
• Internal audio recorder for capturing live performances
• Fully customizable crossfader with curve control knob, channel assignment switches, and Fader Start
• StagelinQ connection for Event/Pro DJ lighting and video control
• Plays uncompressed audio formats (FLAC, ALAC, WAV)
• Crisp 24-bit Denon DJ legacy audio
• USB keyboard support
• Computer Mode for use as a controller for Serato DJ Pro (hardware unlocks) and Virtual DJ (license
required

TECHNICAL SPECIFICATIONS

Connections Audio Outputs
(2) XLR outputs (master left/right, balanced)
(1) RCA output pair (master left/right, unbalanced)
(2) XLR outputs (booth left/right, balanced)
(2) XLR outputs (zone left/right, balanced)
(1) 1
/4” (6.35mm) stereo output (headphones)
(1) 1
/8” (3.5mm) stereo output (headphones)
Audio Inputs
(2) RCA input pairs (line-level, unbalanced)
(2) RCA input pairs (phono- or line-level, unbalanced)
(2) XLR+1
/4” (6.35mm) input
Other
(4) USB ports (for USB drives, 5V, 1A)
(1) USB port (to computer)
(1) Ethernet port
(1) IEC power cable input
Audio Main Outputs
Frequency Response: 20 Hz – 20 kHz +/- 1 dB
Dynamic Range: > 117 dB (A-weighted)
Signal-to-Noise Ratio: > 93 dB (A-weighted)
Headroom
Line Input: > 15 dB
Mic Inputs: > 20bB
Outputs: > 20 dB
Channel Separation: < -90 dB (1 kHz, unity)
T.H.D.
Line/Phono: < 0.01% (1 kHz, unity)
Microphone: < 0.02% (1 kHz, unity)
Analog Input
Microphone: -40 dBu (unity) / -60 dBu (minimum)
Line: +15dBV (minimum) / 0dBV (maximum)
Analog Output
Main, Balanced: +20 dBu (maximum) / +4 dBu (unity)
Main, Unbalanced: +20 dBu (maximum) / 0 dBu (unity)
Zone, Balanced: +24 dBu (maximum) / +4 dBu (unity)
Booth: +24 dBu (maximum) / +4 dBu (unity)
Headphone Output: < 150 mW
